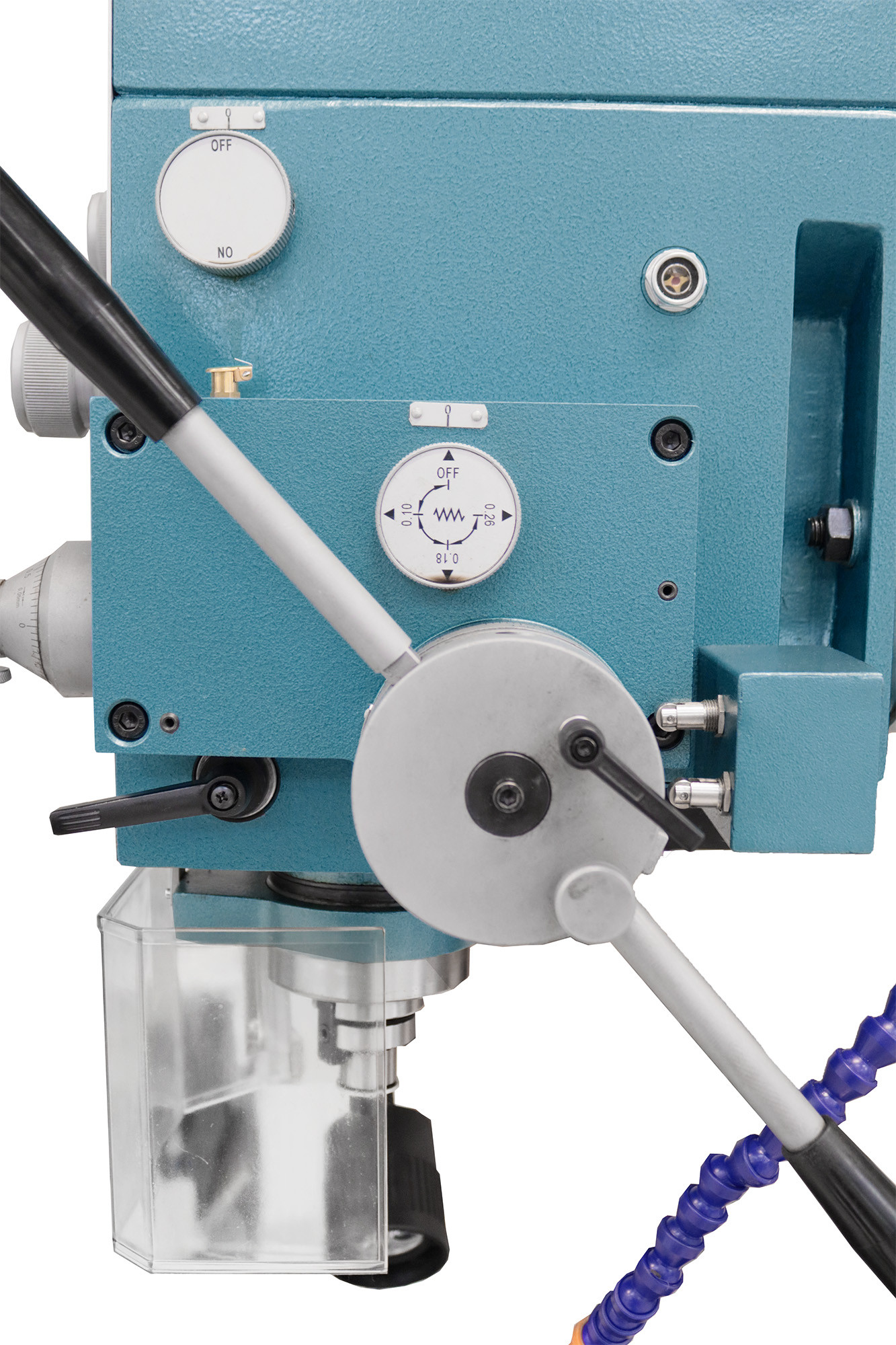

Geared head milling and drilling machine
Item number: #48000000
The SCANTOOL DM-40CA is a versatile geared head milling and drilling machine, designed for precision and performance in demanding workshop environments. Featuring a powerful 1.1 kW motor (3x400V), an MK4 spindle taper, and a cross table measuring 730 x 210 mm, it handles a wide range of drill...
Read More >>
Drilling capacity in steel | 32mm |
Drilling capacity in cast iron | 40mm |
Milling head max. | 80mm |
Distance between base & spindle (mm) | 280 |
Rpm | 75 – 3200 |
Morse Taper | MT4 |
Stroke (mm) | 120mm |
Spindle feeds | 0.10 / 0.18 / 0.26 mm/rev. |
Table length (mm) | 730mm |
Table width (mm) | 210mm |
T-slot | 14mm |
Distance between table & spindle (mm) | 640mm |
Longitudinal travel | 480mm |
Vertical travel | 210mm |
Motor (kW) | 1.1 / 1.5 kW |
Net weight (kg) | 350 |
Gross weight (kg) | 385 |
Package size (L x W x H) | 830 x 760 x 1885 mm |
Voltage | 3x400V |
