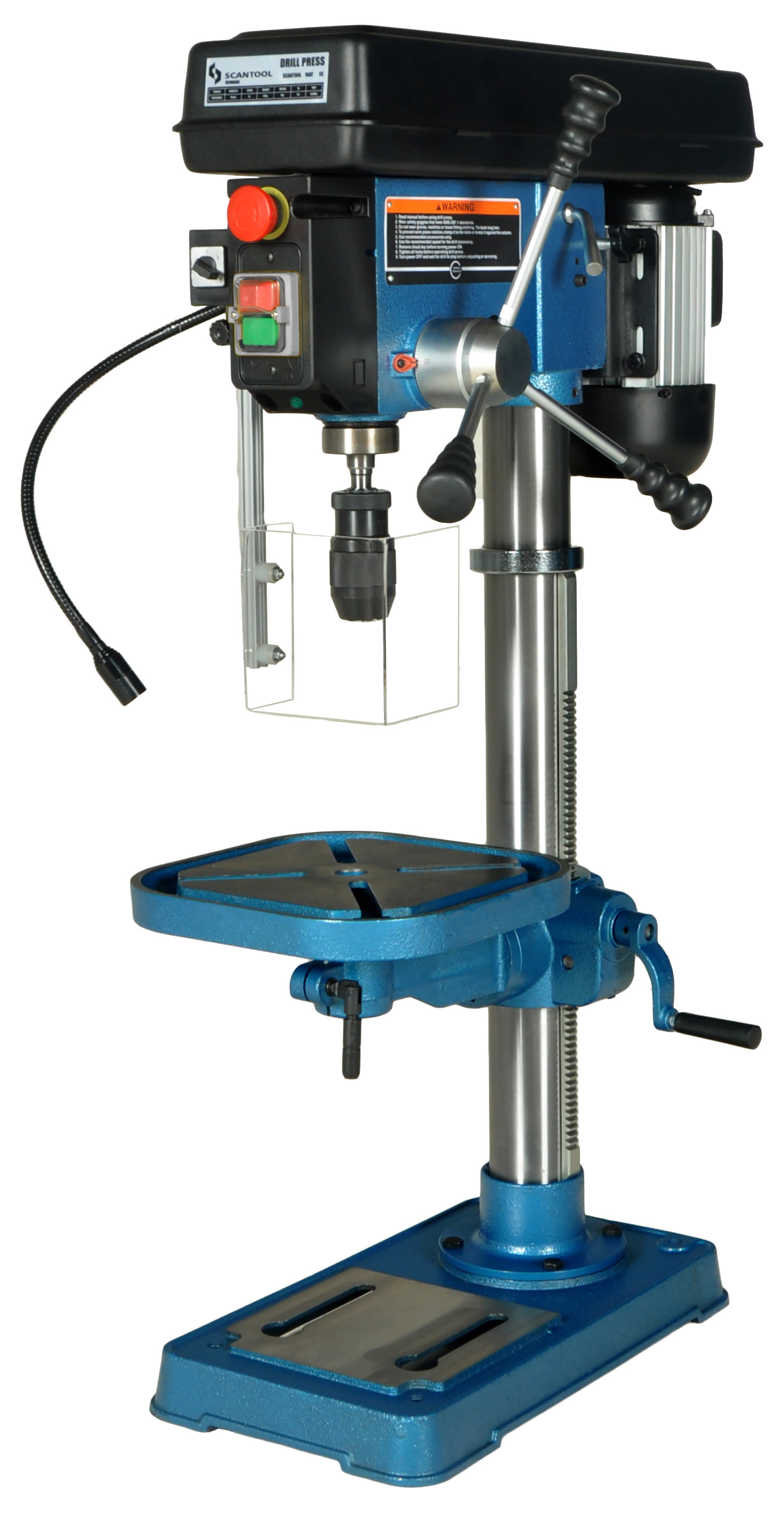

V-belt driven drill press

SCANTOOL 16AEF

Item number: #100764000

Description

SCANTOOL 16AEF & 16ATF are professional drill presses for workshop and industry.

Standard features:

• Morse Taper No. 2

• Complete with auto lock chuck

• Separate emergency stop and working light

• For max. safety when changing the belt speed the machines are supplied with safety switch.

• S... Read More >>

×

Product Specifications

Rpm 280-2380
Voltage 1x230V - 50 Hz
Motor (HP) 1,0
Motor (kW) 0,75
Drilling Capacity (ø mm) 1-20
Drill chuck (mm) 16
Throat depth (mm) 190
Swing Capacity (mm) 410 (14")
Max. distance spindle/table (mm) 720/1210
Size of table (mm) 285x285
Size of base (mm) 480x270
Max. tilt of table (+/-) 45°
Max. spindle travel (mm) 80
Number of spindle speeds 12
On Pedestal 1
Height (mm) 1600
Net weight (kg) 67
